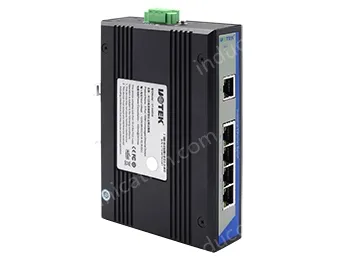

UT-6405 is a 5-port 10/100Mbps unmanaged Ethernet switch. It provides DC input, reverse polarity protection; at the same time, it supports DIN-Rail and wall-mounted under industrial standard, easy for installation.

●5x10/100Base-T(X) ports

●Supports full-duplex or half-duplex
●10/100Mbps auto negotiation
●Auto MDI/MDI-X
●Built-in store-and-forward, supports multiple protocols
●Fail, relay output auto alarm function

●Telecom standard, MTBF>300,000 hours

>>Standards

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-T(X) & 100Base-FX

>>Ports
RJ45 port: 5x10/100Base-T（X）port, auto detection, full/half-duplex, auto MDI/MDI-X

LED indication: PWR, 1～5 RJ-45 port indicator

>>Power requirement
Voltage input:

- DC9-48V, reverse polarity protection

Power consumption: 120mA@24V max.
Terminal block: 1 pluggable 3-pin terminal block
Overload protection: Yes

Reverse polarity protection: Yes

>>Mechanical Characteristics
Case: steel
Installation: DIN-Rail/wall-mounted

Dimension(W x H x D): 150mm×30mm×100mm

>>Environment
Operating temperature: -10℃～60℃
Storage temperature: -40℃～85℃

Relative humidity: 5～95% (non-condensing)

>>Industrial standards
EMI: CE, FCC; EMI: FCC Part 15 Subpart B classA, EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)
