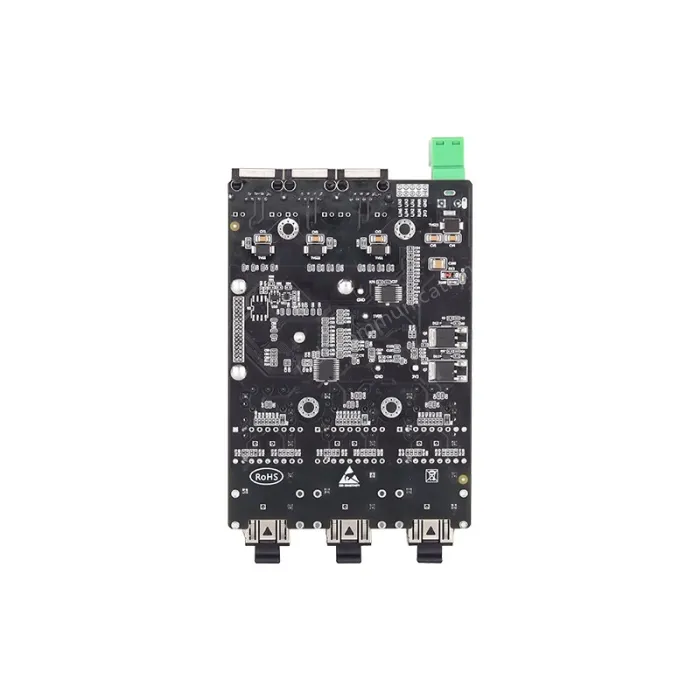

Embedded private switch series meet the requirements of mine intrinsic safety design, with strong anti-interference performance, power redundancy backup, high protection level, suitable for intrinsic safety power application, rich interface, high integration, greatly convenient for users to expand the network, with high flexibility and high efficiency, large capacity of data transmission ability, can adapt to the special industrial environment of the mine.
1. Support 3 Gigabit optical ports and 3 Gigabit electrical ports, Gigabit optical ports support SFP slots or 1×9 optical modules are optional, providing users with flexible networking methods
2. Support private Ring network technology, support RSTP, compatible with STP
3. Support DC9~24V power input, support anti-reverse connection, overcurrent protection, and meet intrinsically safe circuit design standards
4. Support -40°C~+75°C working temperature to meet the application needs of industrial environment.
| Product model | ESM506G-3GF-3GT |
| RJ45 port | Three 10Base-T/100Base-TX/1000Base-T (Gigabit electrical ports) have an adaptive function and support MDI/MDI-X connection |
| Fiber optic port | 3 x 1000Base-X, compatible with 100Base-FX |
| Optical port parameters | Wavelength: 1310nm / 1550nm (single mode), 850nm / 1310nm (multimode) |
| Optical port type: 1×9 optical module SC/ST/FC optical interface optional, or LC optical interface (SFP slot) | |
| Transmission distance: 20~80Km optional (single mode) 550m (multimode) | |
| Transmission rate: 1.25Gbps | |
| Electricity | DC9~24V (Anti-reverse Connection, Overcurrent Protection) |
| Consumption | <5W (@12VDC full load) |
| Network standards | IEEE802.3, 802.3u, 802.3ad, 802.3z, 802.3x, 802.1Q, 802.1D/W, etc |
| Swap function | Port configuration, ingress/egress rate limiting, storm suppression, port aggregation, and port statistics support port VLANs and 802.1Q VLANs |
| Redundancy technology | Support private Ring network technology, support RSTP, compatible with STP |
| Multicast technology | Static multicast MAC address binding is supported |
| Management & Maintenance | Support QoS, support SFP optical module DDM, port mirroring, ping Support online restart, factory reset reset, system upgrade, configuration file upload/download Support unified host computer management |
| Exchange mode | Store-and-forward |
| Backplane bandwidth | 14Gbps |
| Cache size | 2Mbit |
| MAC address table | 2K |
| Size | 110mm×77mm×14.7mm (excluding terminal blocks and optical interface components) |
| Operating temperature | -40°C~+75°C |
| Storage temperature | -40℃~+85℃ |
| humidity | 5~95% (no condensation) |
| EMC | IEC61000-4-5(Surge), Level2 IEC61000-4-4(EFT), Level3 |
