Embedded private switch series meet the requirements of mine intrinsic safety design, with strong anti-interference performance, power redundancy backup, high protection level, suitable for intrinsic safety power application, rich interface, high integration, greatly convenient for users to expand the network, with high flexibility and high efficiency, large capacity of data transmission ability, can adapt to the special industrial environment of the mine.
- Support 3 x 1*9 Gigabit optical ports, single/multi-mode optional, SC/ST/FC interface optional
- Support 3 x 10/100/1000M self-adaptive electrical ports, MDI/MDI-X self-adaptive, and support network port surge protection
- Compatible with most mining intrinsically safe power supply application requirements, fanless and low-power design
- DC9-24V wide voltage, -40~75°C wide temperature, reliable EMC protection

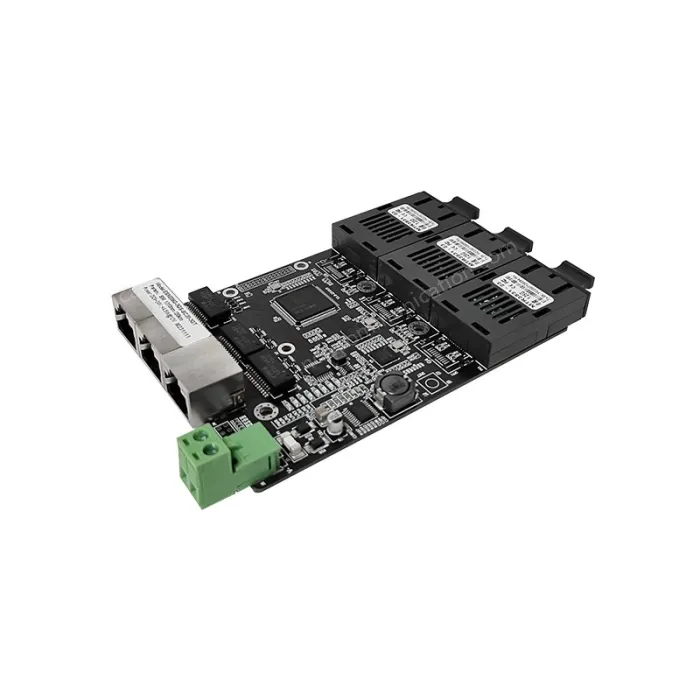

| Product model | ESM206G-3GF-3GT |
| RJ45 port | Three 10Base-T/100Base-TX/1000Base-T (Gigabit electrical ports) have an adaptive function and support MDI/MDI-X connection |
| Fiber optic port | 3 x 1000Base-FX, compatible with 100Base-FX |
| Optical port parameters | Wavelength: 1310nm/1550nm |
| Optical port type: SC/ST/FC optical interface optional, (SFP slot optional) | |
| Transmission distance: 20~80Km optional (single mode) 2Km (multi-mode) | |
| Transmission rate: 1.25Gbps | |
| Electricity | DC9~24V (2 anti-anti-anti-reflective diodes, dual thyristor protection, over-current slow start) |
| Consumption | <5W (@12VDC full load) |
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, etc |
| Exchange mode | Store-and-forward |
| Backplane bandwidth | 14Gbps |
| Cache size | 2Mbit |
| MAC address table | 2K |
| EMC | IEC61000-4-5(Surge), Level2 IEC61000-4-4(EFT), Level2 |
| Size | 110mm×77mm×14.7mm |
| Operating temperature | -40°C～+75°C |
