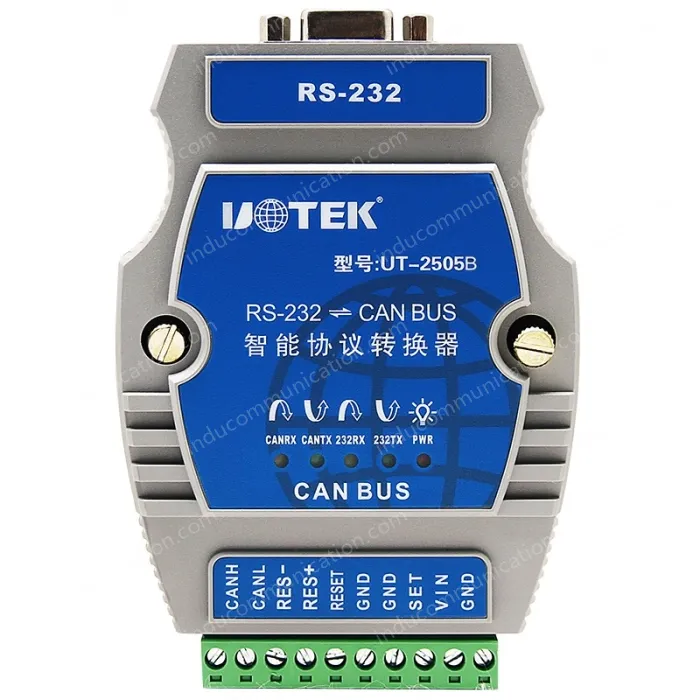

UT-2505B is a high performance RS-232 to CAN-bus converter. It supports the interconnection between RS-232 and CAN-Bus. Rs-232 baud rate is 1,200-115,200bps, and CAN-bus baud rate is 5kbps-1Mbps. The converter supports three data conversion modes: transparent conversion, transparent tape identification conversion and Modbus protocol conversion. This extends the application scope of this converter. UT-2505B converter provides configuration tools that allow users to set the interface parameters of UT-2505B. It is industrial standard design; CAN communication interface and system is isolated; with anti-interference and surge protection ability, it is widely used in industrial control, data communication systems.

• Supports bidirectional data transmission between CAN-bus and RS-232
• Supports CAN 2.0 protocol
• 1-ch CAN-bus interface, 5Kbps-1Mbps transmission rate
• 1-ch RS-232 interface, 600bps-230Kbps transmission rate
• Provides 3 data conversion mode: transparent conversion, transparent tape identification conversion, Modbus protocol conversion
• Operating voltage: 12-36 V DC
• Operating current: ≤150mA@12V
• Operating temperature: -40 ~ 85℃
• Storage temperature: -40 ~ 85℃
• Relative Humidity: 5 ~ 95%(non-condensation)
• Storage humidity: 5 ~ 95%(non- condensation)
• Isolated voltage: 1,000VDC
