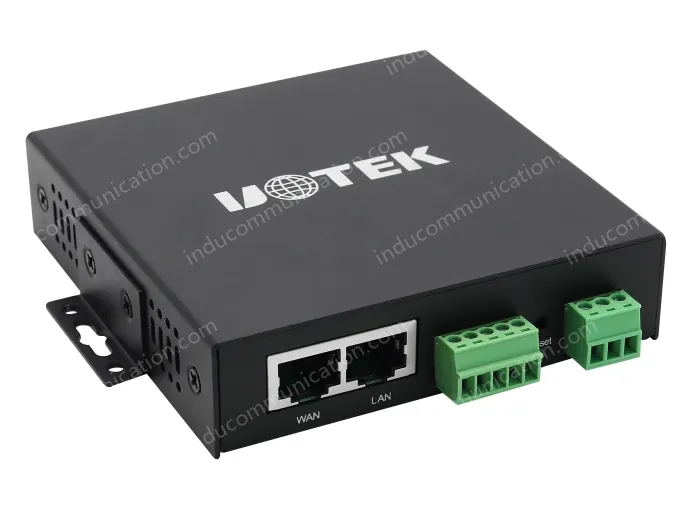

R9505 Series

R9505-FS

Specification name

Hardware specification

CPU

Industrial grade 32-bit

DRAM capacity

64MB (expandable up to 128MB)

FLASH capacity

16MB（expandable up to 32MB）

Operating system

Deep customization based on Linux

4G

FDD-LTE:B1/B3/B5/B8

TDD-LTE:B34/B38/B39/B40/B41

3G

WCDMA:B1/B5/B8

TD-SCDMA:B34/B39

EVDO:800MHz

CDMA2000

GSM

EDGE/GPRS/GSM:1800MHz/900MHz

SIM/UIM interface

Supports 1.8V/3V SIM/UIM

Built-in 15KV ESD protection

1 Drawer cardholder

Industrial serial interface

1 RS232&RS485 (with option RS232 or RS485)

Antenna interface

2 external antenna connections, characteristic impedance 50 ohms, SMA negative (1 4G antenna, 1 4G antenna or Wi-Fi antenna optional)

Ethernet interface

1 WAN/LAN 10/100Mbit/s adaptive, built-in 1.5KV electromagnetic isolation protection, default WAN, configurable as LAN

1 LAN 10/100Mbit/s adaptive, built-in 1.5KV electromagnetic isolation protection

Indicator light

1 PWR Power Indicator

1 SYS system indicator

1 LAN Local Area Network indicator

1 NET IoT indicator

1 WAN Wide Area Network indicator

1 VPN Virtual Private Network indicator

Power interface

Terminal power supply with built-in anti-reverse connection protection to avoid damage to the equipment by wrong positive and negative connections

Real-time clock

Built-in RTC, battery powered

Standard power supply

DC12V/1A, supports overload protection, reverse connection protection

Reset button

The Reset button can be used to restore the device's parameter configuration to the factory default values

Scope o f electricity supply

+6~35VDC (DC model)

Product size

LxWxH=98x100x25mm (without antenna and mountings)

Idle current

130mA@12VDC

Average current

190mA@12VDC

Peak current

240mA@12VDC

Max. power consumption

2.88W

Ambient temperature and humidity

Storage temperature: -40~85°C

Operating temperature: -30~75°C

Relative humidity: 5 ~ 95% (no condensing)

Weight

315g

Housing

Metal housing design, protection level up to IP30

Mounting method

Wall-mounted or Rail-mounted (optional)

R9505 Series

R9505-FS

Specification name

Software specification

PPPoE certification

PAP/CHAP/MS-CHAP/MS-CHAPV2

Network Protocol

Support ARP,Ethernet LAN protocols

support static IP, DHCP, PPPoE protocols

VLAN

Support VLAN management

Network access

APN, VPDN

IP Application

Ping,Traceroute,DHCP Server/Client,DNSRelay,DynamicDNS,Telnet,SSH,HTTP,HTTPS,TFTP,FTP,SFTP,NAT

IP Routing

Dynamic routing, static routing

Link detection

TCP/Ping heartbeat detection, VPN link detection, and support for automatic disconnection and reconnection to ensure that the device is "always on"

Link backup

Link switching for cellular networks, Wi-Fi and wired Ethernet

Built-in watchdog

Supports self-recovery of equipment failures to ensure stable equipment operation

Qos

Upstream and downstream bandwidth limits

VPN

OpenVPN，IPsec，L2TP/PPTP，N2N，GRE

DTU

Built-in software DTU function

Firewall

Support NAT, PAT, DMZ port mapping, IP, port and MAC filtering

Network Security

Support for administrative user hierarchy: administrator, maintainer

Alarm events

System and application logs

WLAN

Supports IEEE 802.11n b/g/n

AP, Client working mode

System open, shared key, WPA/WPA2 authentication

WEP/TKIP/AES encryption

Portal access authentication

Timed task management

Support for setting timed reboots

SNMP

SNMP v1/v2

Traffic statistics

Real-time traffic, monthly traffic statistics, traffic limit setting

Management and maintenance

Support Web management

Telnet and SSH terminals

System status monitoring

NTP client with support for network synchronization of device system clocks

Support for import and export of configuration files

Support for local and remote firmware upgrades, saving manpower and resources

Network tools: Ping, Tracert

Support Utek Device Management Cloud device management cloud platform, batch operation, centralized management
