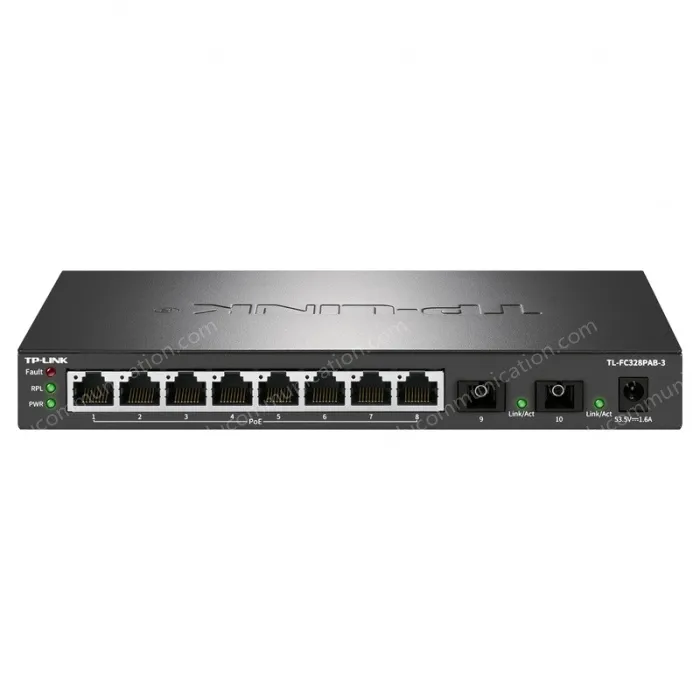

TL-FC328PAB-3 is an optical fiber transceiver that supports ERPS ring network, providing 8 Gigabit electrical ports and 2 Gigabit SC optical ports, which can convert electrical port signals to optical port signals and carry out long-distance data transmission through optical fibers.

TL-FC328PAB-3 has both A and B optical ports, which is convenient for pairing with the peer and can form a cascade topology, which is more flexible than conventional single-port fiber transceivers.

The TL-FC328PAB-3 uses wavelength division multiplexing technology, which allows each optical port to receive and transmit data simultaneously with only one single-mode fiber, and the maximum transmission distance can be up to 3 kilometers.

The TL-FC328PAB-3 can be used with the TL-FC311A-3 and TL-FC311B-3.

• 2 Gigabit SC optical ports, 8 Gigabit RJ45 Ethernet ports (PoE)
• Based on wavelength division multiplexing technology, single-mode and single-fiber transmission, the maximum transmission distance is 3 kilometers
• Operating wavelength: A-terminal: 1550nm (transmit), 1310nm (receive), B-terminal: 1310nm (transmit), 1550nm (receive)
• It supports remote management of business cloud APP, WEB and local WEB
• Supports port aggregation, port traffic statistics, and port monitoring
• It supports intelligent deployment, abnormal alarms, and fast troubleshooting
• Support 801. Q VLAN, QoS, bandwidth control
• ERP ring network configuration and RPL configuration are supported to improve network reliability

Hardware specifications
