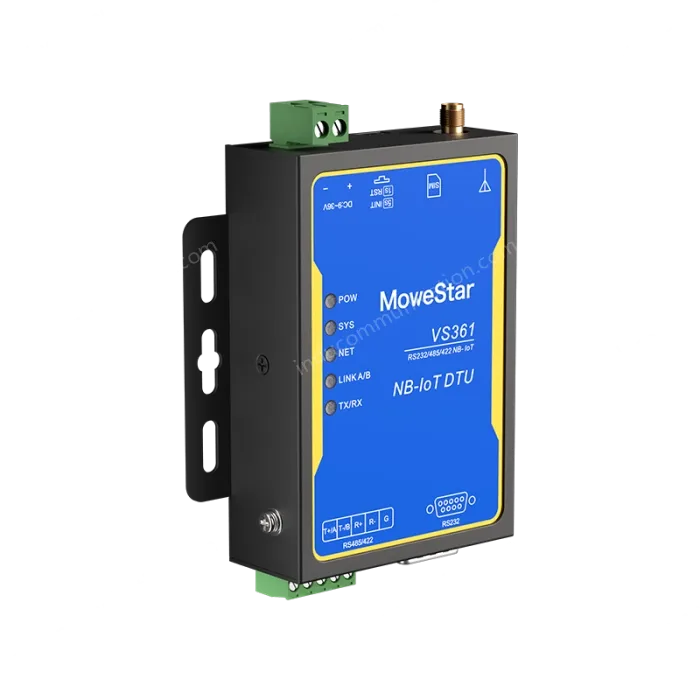

Industrial wireless data transmission terminal is a 4G/NB-IoT wireless data transmission terminal equipment based on the full netcom network of China Mobile, China Unicom and China Telecom. It provides the wireless data transmission channel of TCP/IP network protocol for industrial users, and can provide a fully transparent data channel to achieve two-way data transparent transmission from serial port to network. Realize wireless data communication between the field RS485/RS232/RS422 bus equipment and the central control system. Product communication stability, easy to use, industrial protection ability is superior, especially suitable for harsh industrial environment.
1. Support RS232/485/422 to NB-IoT
2. Support the NB network of the three major operators
3. Low power consumption, low cost and wide coverage
4. Support AT command control, support heartbeat packet, registration report function
5. Support network transparent transmission + MQTT + Modbus and other working modes
6. Industrial-grade design, stable and reliable
| Hardware parameters | |
| Product model | VS361 |
Network standard | B3, B5, B8, etc., support China Telecom, China Mobile, and China Unicom NB-IoT networks |
| Serial - Number of ports | 1 x RS-232/RS-485/RS-422 |
| Serial-interface form | RS-232 interface: DB9 pin male RS-485/RS-422 interface: 5-digit 3.81mm pitch industrial grade terminal block |
| Serial port - communication rate | 600~460800bps |
| Serial port - data format | Support data bits: 8 bits, stop bits: 1~2 bits, check bits: no check/ODD odd check/EVEN even check |
| Electricity | External DC: DC9~36V, support anti-reverse polarity protection function |
| Consumption | (143mA@12V for communication, 16mA@12V for idle connection) |
| ESD indicators | EN61000-4-2 ESD Level 4: ±8kV contact discharge, ±15kV air discharge |
| Ingress protection | Surge Protection: Power : ±2kV/common mode, ± 2kV/differential mode Data port: ±2kV/common mode, ±2kV/differential mode EFT Test: Power supply: ±2kV, data port: ±2kV |
| Product Certification | CE、FCC、RoHS |
| Exterior dimensions | 96mmX90mmX26mm |
| Operating temperature | -40℃～+85℃ |
| Storage temperature | -40°C~+85°C 5%~95% RH (no condensation) |
| Software parameters | |
| Network protocols | IPv4/TCP/UDP |
| Configuration | AT Command |
| Simple transparent transmission method | TCPClient/UDP Client |
| Modbus | Modbus RTU/TCP |
| Serial port data packaging mechanism | The default packaging time is 500ms, and the packaging length is 1000bytes |
| MQTT | Alibaba MQTT/China Mobile OneNet MQTT (not supported by telecom cards) |
| Network caching | Send: 1Kbyte Receive: 1Kbyte |
| Serial port cache | Send: 1Kbyte Receive: 1Kbyte |
| The number of socket connections that are supported | 2-way, independent of each other |
| Supporting software | DTU configuration tool |
