PoE switch adopts high-performance imported switching chip, supports IEEE802.3af/at standard, supports 10/100/100M adaptive PoE electrical port, single port maximum power of 30W! Support -40~85 ° C operating temperature, DC48-52V dual power supply redundancy, support power failure alarm output! Indicator status, guide mounting, fan-less thermal housing design, can adapt to a variety of harsh industrial environment application needs.

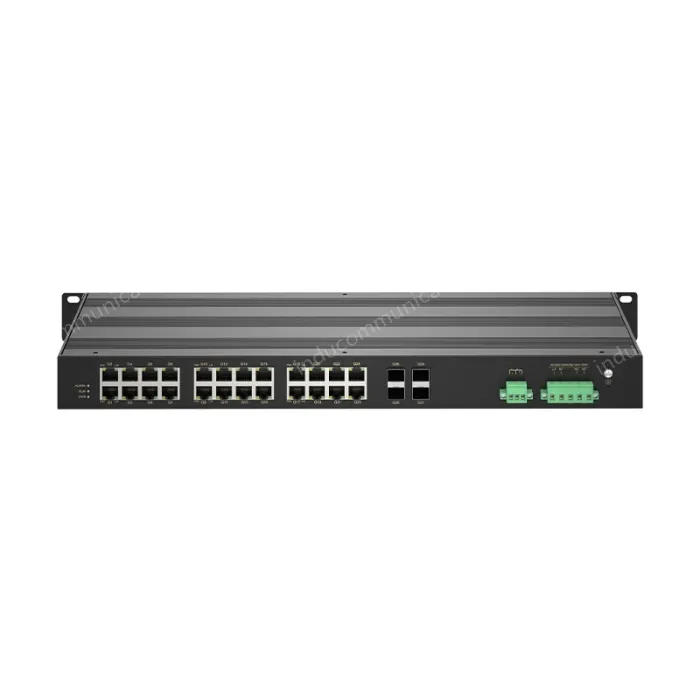

1. Support 4 Gigabit SFP slots and 24 Gigabit PoE electrical ports, providing users with flexible networking methods
2. It conforms to the IEEE802.3at standard, is compatible with IEEE802.3af, and the maximum output power of a single port PoE is 30W, and the maximum output power of the whole machine is 370W
3. Support private Ring network technology, support ERPS, RSTP, and compatible with STP
4. Support single DC48~57V DC power input or AC120~264V/DC130~370V AC/DC power input optional
5. High-strength aluminum alloy shell, the equipment can reliably work in the harsh industrial environment of -40°C~+70°C.
| Product model | ES6028GP-4GF-24GTPOE |
RJ45 port
| 24 x 10Base-T/100Base-TX/1000Base-T (Gigabit PoE ports) It supports full/half-duplex mode, MDI/MDI-X self-adaptive, PoE power supply meets the IEEE802.3af/at standard, and the maximum output power of a single port is 30W PoE Power Pins: 1, 2 (V+), 3, 6 (V-) |
Fiber optic port | 4 x 100/1000Base-F(X), support DDM function Gigabit optical ports support 100 Gigabit SFP modules (port rate must be configured to force 100 Mbit/s) |
| Optical port parameters | Wavelength: 1310nm/1550nm (single-mode) 850nm/1310nm (multi-mode) Optical port type: shielded SFP base, LC optical interface Transmission distance: 20~80km optional (single mode) 550m (multi-mode) Transmission rate: 1.25Gbps |
Electricity | DC model: DC48~57V, anti-reverse AC model: AC120~264V / DC130~370V |
| Consumption | <21W@DC48V (no PD), <32W@AC220V |
| Network standards | IEEE802.3, 802.3u, 802.3z, 802.3x, 802.1P, 802.1Q, 802.1D/W, etc |
Swap function | Supports port configuration, port rate limiting, storm suppression, storm detection, port aggregation, LACP, and port statistics . 802.1Q VLAN, port isolation, MAC address aging, and static MAC address binding |
| Redundancy technology | Support private Ring network technology, support ERPS, RSTP, and STP compatibility |
| Multicast technology | IGMP snooping and static multicast MAC address binding are supported |
| Security management | Support WEB, TELNET, SSH control, ACL access control list , 802.1X port authentication, relay alarm, email log, loopback detection |
| Management & Maintenance | PoE management, maximum power and priority configuration, port mirroring, ping, and DDM support QoS, SNMPv1/v2c/v3, SNMP v1/v2c/v3TRAP, RMON, LLDP Support user rights management, system logs, local/network time synchronization, daylight saving time Support online reboot, factory reset, system upgrade, Configuration file upload/download supports unified host computer software management |
| Exchange mode | Store-and-forward |
| Backplane bandwidth | 56Gbps |
| Cache size | 4.1Mbit |
| Mac address table | 8K |
Size | 482.6mm×210mm×44mm (including hanging ears, excluding terminal blocks and optical interface components). |
| Operating temperature | -40°C～+70°C |
| Storage temperature | -40℃~+85℃ |
| EMC | IEC61000-4-2(ESD),Level4 IEC61000-4-5(Surge),Level3 IEC61000-4-4(EFT),Level4 |
