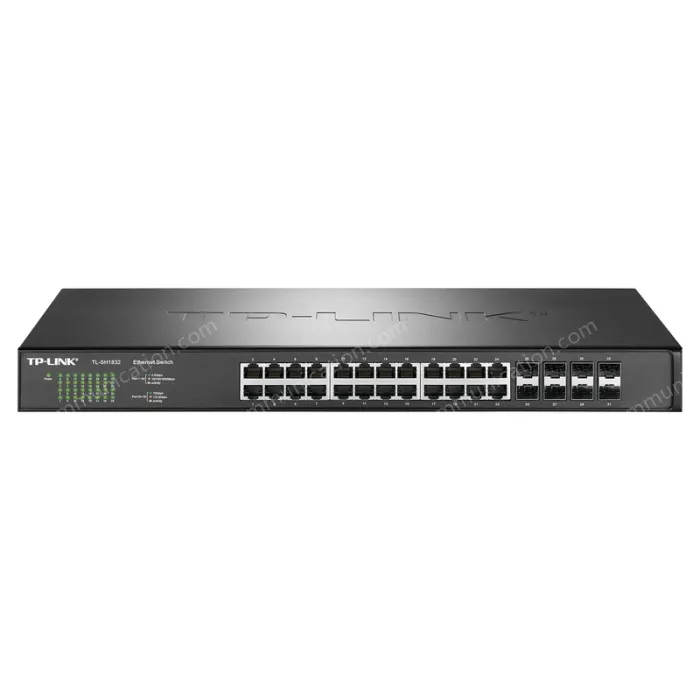

TL-SH1832 is a 10 Gigabit uplink Ethernet switch independently developed by TP-LINK, providing 24 x 2.5G/1Gbps RJ45 ports and 8 x 10 Gigabit SFP+ optical ports, supporting IEEE 802.3ae, 802.3ab and 802.3bz standards.

• Provides 24 2.5Gbps network ports
• Provides 8 10 Gigabit uplink SFP+ optical ports
• All ports support wire-speed forwarding and automatic rollover
• Plug and play, no configuration required, rack-mounted
• Supports IEEE 802.3ae, 802.3ab, and 802.3bz standards

Port performance

It provides 24 2.5G/1Gbps adaptive RJ45 ports and 8 10 Gigabit SFP+ optical ports, all of which support wire-speed forwarding.

Each port supports MDI/MDIX auto-rollover and duplex/rate auto-negotiation;

Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control.

The store-and-forward mechanism is adopted, and the built-in high-capacity cache is integrated, and all ports can achieve 2.5Gbps non-blocking line-rate forwarding.

Stable and reliable

The low-power design of the main machine, the all-steel shell naturally dissipates heat, and ensures the stable operation of the product for a long time.

Plug and play, simple to use

The 19-inch standard rack-mount is plug-and-play and requires no management, and dynamic LED indicators provide simple working status prompts and troubleshooting.

Hardware specifications

Software Specifications
