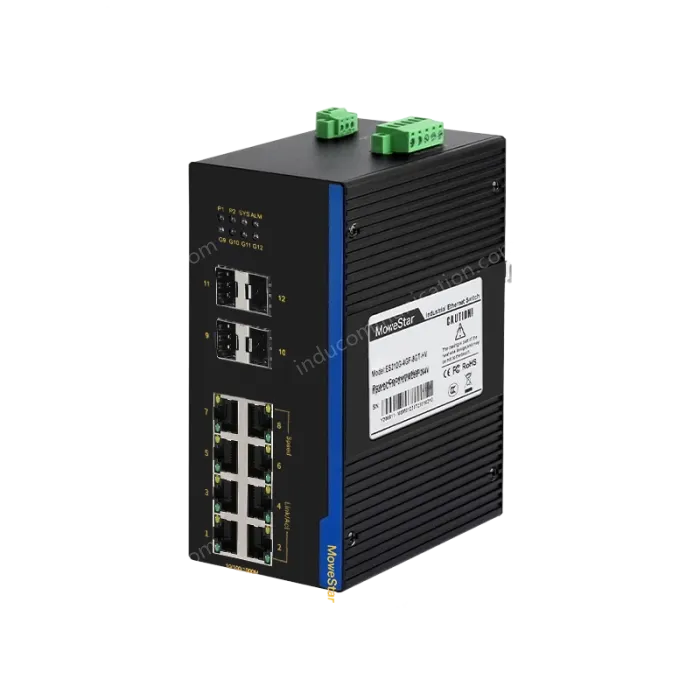

The industrial Ethernet switch adopts high-performance imported switching chip to ensure the stable transmission of large traffic data, and supports 10/100/100M adaptive electrical port; Support -40~85℃ operating temperature, industrial power protection, indicator status display, guide rail/rack installation, fan-less thermal housing design, to achieve real readout, convenient and fast, but also meet the EMC4 level protection, IP40 protection, 6000V lightning protection and other indicators, can adapt to a variety of harsh industrial environment application needs.
● 10/100B/1000Base-T Adaptive Port
● Support Full/Half Duplex, MDI/MDIX Auto Connection
● Built in 1-Relay Alarm for Power Failure
● Compact IP40 Rated Housing with Fanless Design
● Wide-Ranging Redundant Power Design
Technical Parameters | |
Protocol Standard | IEEE802.3(Ethernet), IEEE802.3u(100Base-TX&100Base-FX), IEEE802.3x(Flow control), IEEE802.3z(1000Base-LX), IEEE802.3ab (1000Base-T) |
Switch Capability | |
MAC Table Size | 16k |
Switch Bandwidth | 24Gbps |
Switch Latency | <5μs |
Interface | |
Gigabit port | Number: 12 |
Connector: SFP Gigabit port(LC interface, single/multi-mode optional) or 10/100/1000M RJ45 port | |
Baud rate: 1000Base-FX(SFP), auto-negotiation 10/100/1000M-TX | |
Terminal block for power input | 5.08mm terminal block |
Terminal block for relay alarm | 5.08mm terminal block, 1A@24VDC |
Communication Distance | |
Twisted-pair | 100m(CAT5/CAT5e cable) |
Multi-mode fiber | Gigabit multi-mode: 850nm, 500m |
Single mode fiber | Gigabit single mode: 1310nm, 20km |
LED Indicator Lights | |
Front panel LED lights | Port light: LINK/ACT; SPEED; ALARM |
System work light: RUN | |
Power status light: PWR1/PWR2 | |
Power | |
Input power | DC12~48V DC48V AD220V |
Power consumption | <15W@(MAX) |
Overload protection | support |
Inversed protection | support |
Working Environment | |
Operating temperature | -40°C~85°C |
Storage temperature | -45°C~85°C |
Ambient humidity | 10%~95% |
Physical Characteristics | |
Shell | IP40 protection, aluminum alloy shell |
Installation | standard DIN-rail Mounting |
Dimension | 156mm×120mm×72mm |
Industry Standard | |
EMC | EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 |
Impact | IEC60068–2-27 |
Falling | IEC60068-2-32 |
Shock | IEC60068-2-6 |
Warranty | |
Warranty | 5 Years |
Certification | CE, FCC, RoHS |
