Brief Introduction

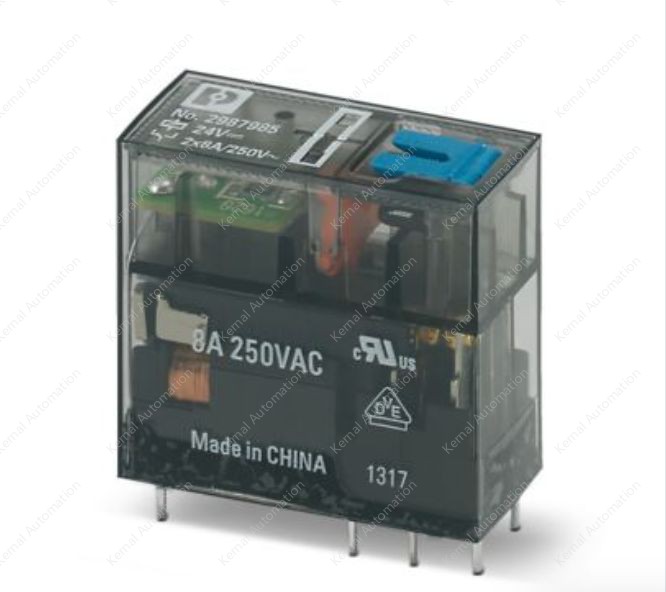

REL-MR- 24DC/21-21AU/MS

Product type: Plug-in miniature power relay, which belongs to a single relay.Electrical characteristicsInput data: Rated input voltage is 24V DC, input voltage range is 19.2V DC to 52.8V DC, and the drive mode is monostable and nonpolarized. At the rated input voltage, the typical input current is 18mA, the typical response time is 9ms, and the typical release time is 6ms.Output data: 2 changeover contacts for contact switching type, single contact type for switching contact, contact material for AgNi, hard gold plating. The maximum switching voltage is 30V AC or 36V DC with the gold plating intact and 250V AC/DC when the gold plating is broken. The limiting continuous current is 50mA when the plating is intact and 8A after breakage.
