Brief Introduction

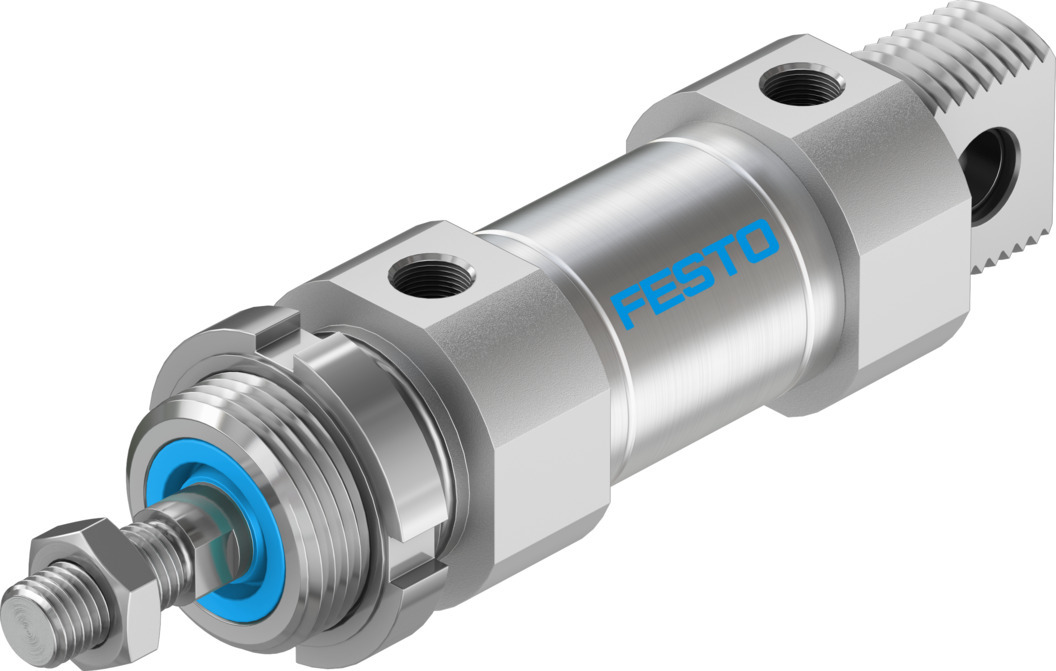

DSNU-32-260-PPV-A-S6

Stroke1 mm ... 500 mm Piston diameter32 mm CushioningElastic cushioning rings/plates at both ends Self-adjusting pneumatic end-position cushioning Pneumatic cushioning, adjustable at both ends Mounting positionoptional DesignPiston Piston rod Cylinder barrel Position detectionVia proximity switch VariantsExtended male piston rod thread Piston rod with female thread Custom thread on the piston rod Piston rod with male thread shortened at one end Extended piston rod Clamping unit on the piston rod Axial supply port With direct mounting Lateral supply port Metal scraper With protection against rotation High corrosion protection Dust protection Uniform, slow movement Low friction Through piston rod Heat-resistant seals max. 120°C Piston rod at one end Protection against torque/guideSquare piston rod Operating pressure0.1 MPa ... 1 MPa Operating pressure1 bar ... 10 bar Mode of operationDouble-acting CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX) UKCA marking (see declaration of conformity)To UK EX instructions Explosion protection certification outside the EUEPL Db (GB) EPL Gb (GB) Explosion protectionZone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) ATEX category gasII 2G ATEX category dustII 2D Explosion ignition protection type for gasEx h IIC T4 Gb Explosion ignition protection type for dustEx h IIIC T120°C Db Explosion ambient temperature-20°C
