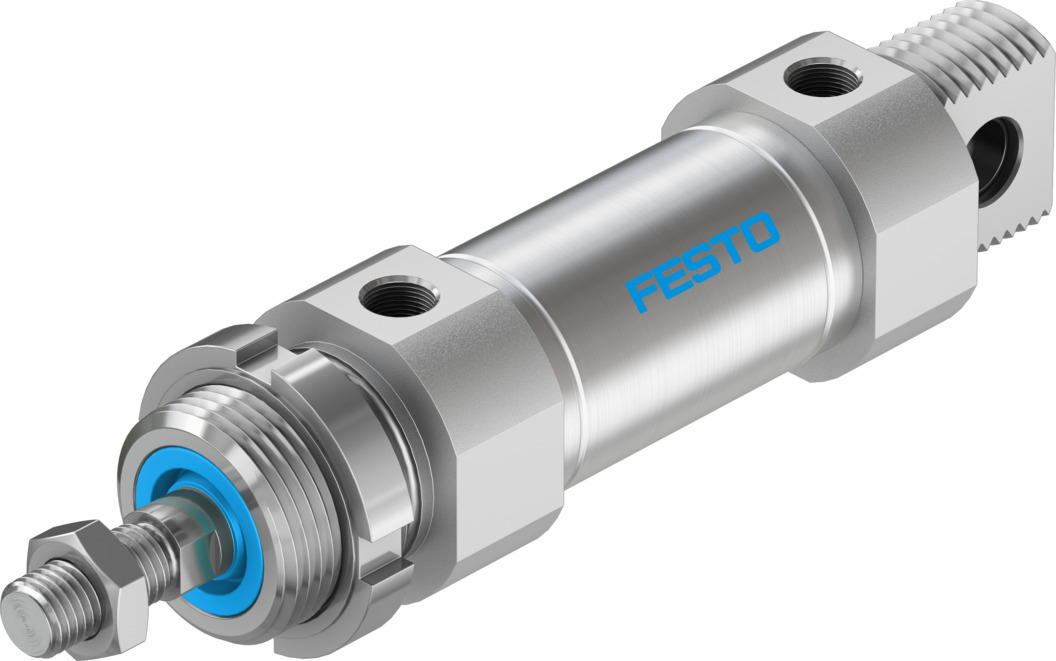

DSNU-32-10-P-A

Stroke10 mm Piston diameter32 mm Piston rod threadM10x1.25 CushioningElastic cushioning rings/plates at both ends Mounting positionoptional DesignPiston Piston rod Cylinder barrel Position detectionVia proximity switch Symbol00991217 Operating pressure0.1 MPa ... 1 MPa Operating pressure1 bar ... 10 bar Mode of operationDouble-acting Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC2 - Moderate corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Cleanroom classClass 6 according to ISO 14644-1 Ambient temperature-20 °C ... 80 °C Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke415 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke482.5 N Moving mass130 g Product weight384 g Type of mountingWith accessories Pneumatic connectionG1/8 Note on materialsRoHS-compliant Material coverWrought aluminium alloy Material sealsNBR TPE-U(PU) Material piston rodHigh-alloy steel Material cylinder barrelHigh-alloy stainless steel
