Ambient temperature
-20 °C ... 80 °C
Impact energy in end positions
0.2 J
Cushioning length
15 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
158.3 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
188.5 N
Moving mass for 0 mm stroke
44 g
Additional moving mass per 10 mm stroke
4 g
Basic weight for 0 mm stroke
186.8 g
Additional weight per 10 mm stroke
7.2 g
Type of mounting
With accessories
Pneumatic connection
G1/8
Note on materials
RoHS-compliant
Material cover
Wrought aluminium alloy
Colourless anodised
Material seals
NBR
TPE-U(PU)
Material piston rod
High-alloy stainless steel
Material cylinder barrel
High-alloy stainless steel
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文
Pneumatic cylinders

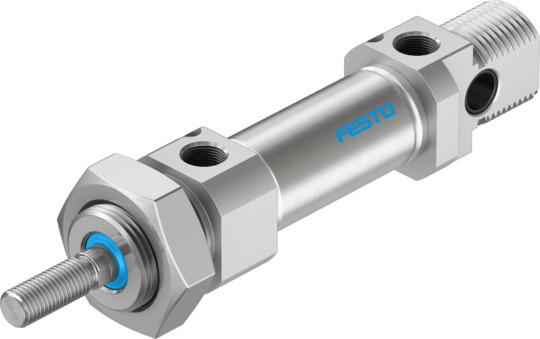

DSNU-20-220-PPV-A
DSNU-20-220-PPV-A
Subscribe to get pricesModel: DSNU-20-220-PPV-A
Order No: 14321
SKU: 1738315009304493296
Condition: New Sealed Under Guarantee
Size: 0.00 mm，0.00 mm，0.00 mm
Weight: 44.00g
Product Selection Engineer：XiongZH
In Stock
Brief Introduction
DSNU-20-220-PPV-A
Ambient temperature-20 °C ... 80 °CImpact energy in end positions0.2 JCushioning length15 mmTheoretical force at 0.6 MPa (6 bar, 87 psi), return stroke158.3 NTheoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke188.5 NMoving mass for 0 mm stroke44 gAdditional moving mass per 10 mm stroke4 gBasic weight for 0 mm stroke186.8 gAdditional weight per 10 mm stroke7.2 gType of mountingWith accessoriesPneumatic connectionG1/8Note on materialsRoHS-compliantMaterial coverWrought aluminium alloyColourless anodisedMaterial sealsNBRTPE-U(PU)Material piston rodHigh-alloy stainless steelMaterial cylinder barrelHigh-alloy stainless steel
