Brief Introduction

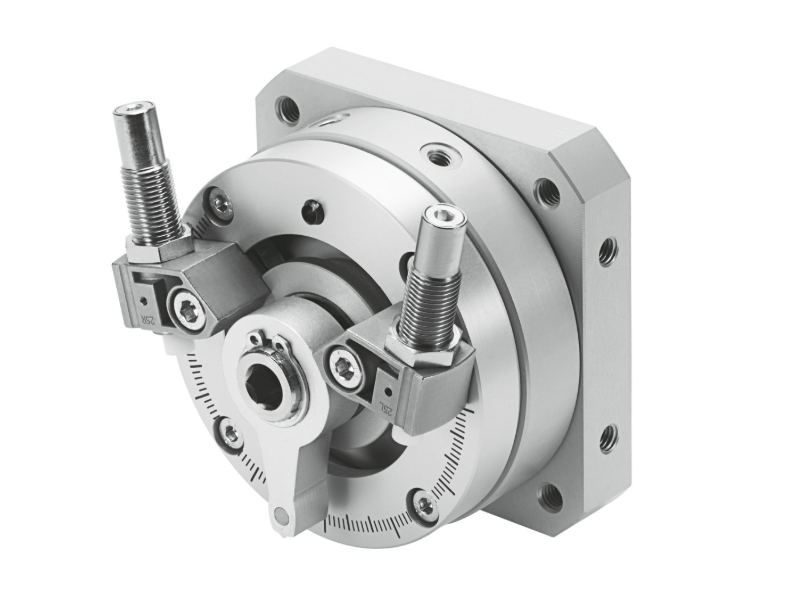

DSM-40-270-CC-A-B

Size40 Cushioning angle16 deg Rotation angle adjustment range0 deg ... 240 deg Swivel angle0 deg ... 240 deg CushioningShock absorber at both ends Mounting positionoptional Fine adjustment-3 deg Mode of operationDouble-acting DesignVane Position detectionVia proximity switch Symbol00991265 Operating pressure0.15 MPa ... 1 MPa Operating pressure1.5 bar ... 10 bar Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)0.7 Hz Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Corrosion resistance class CRC0 - No corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Ambient temperature-10 °C ... 60 °C Max. axial force120 N Max. radial force350 N Theoretical torque at 0.6 MPa (6 bar, 87 psi)20 Nm Permissible mass moment of inertia0.11 kgm² Product weight2800 g Type of mountingVia female thread Pneumatic connectionG1/8 Note on materialsRoHS-compliant Material drive shaftSteel Nickel-plated Material sealsTPE-U(PU) Material housingWrought aluminium alloy Size40 Cushioning angle16 deg Rotation angle adjustment range0 deg ... 240 deg Swivel angle0 deg ... 240 deg CushioningShock absorber at both ends Mounting positionoptional Fine adjustment-3 deg Mode of operationDouble-acting DesignVane Position detectionVia proximity switch Symbol00991265 Operating pressure0.15 MPa ... 1 MPa Operating pressure1.5 bar ... 10 bar Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)0.7 Hz Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Corrosion resistance class CRC0 - No corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Ambient temperature-10 °C ... 60 °C Max. axial force120 N Max. radial force350 N Theoretical torque at 0.6 MPa (6 bar, 87 psi)20 Nm Permissible mass moment of inertia0.11 kgm² Product weight2800 g Type of mountingVia female thread Pneumatic connectionG1/8 Note on materialsRoHS-compliant Material drive shaftSteel Nickel-plated Material sealsTPE-U(PU) Material housingWrought aluminium alloy
