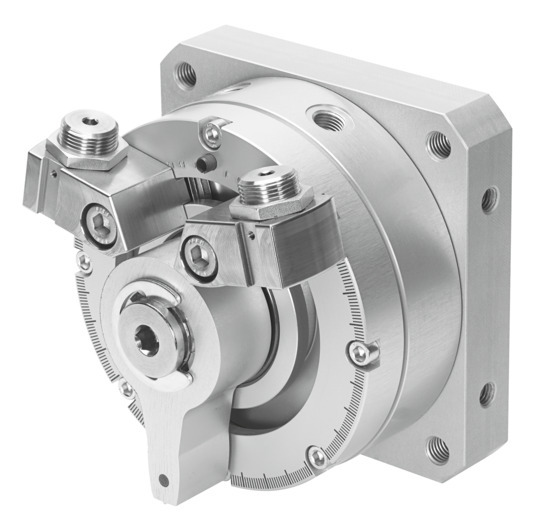

DSM-32-270-P-A-B

Size32 Cushioning angle1.4 deg Rotation angle adjustment range0 deg ... 270 deg Swivel angle0 deg ... 270 deg CushioningElastic cushioning rings/plates at both ends Mounting positionoptional Fine adjustment-6 deg Mode of operationDouble-acting DesignVane Position detectionVia proximity switch Symbol00991265 Operating pressure0.15 MPa ... 1 MPa Operating pressure1.5 bar ... 10 bar Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)2 Hz Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Corrosion resistance class CRC0 - No corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Cleanroom classClass 6 according to ISO 14644-1 Ambient temperature-10 °C ... 60 °C Max. axial force75 N Max. radial force200 N Theoretical torque at 0.6 MPa (6 bar, 87 psi)10 Nm Permissible mass moment of inertia0.025 kgm² Product weight1425 g Type of mountingVia female thread Pneumatic connectionG1/8 Note on materialsRoHS-compliant Material drive shaftSteel Nickel-plated Material sealsTPE-U(PU) Material housingWrought aluminium alloy
