- Size6
- Cushioning angle0.5 deg
- Swivel angle0 deg ... 90 deg
- Permissible stop radius10 mm
- CushioningElastic cushioning rings/plates at both ends
- Mounting positionoptional
- Mode of operationDouble-acting
- DesignVane
- Position detectionVia proximity switch
- Symbol00991265
- VariantsSpigot shaft
- Operating pressure0.35 MPa ... 0.8 MPa
- Operating pressure3.5 bar ... 8 bar
- Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)3 Hz
- Repetition accuracy1 deg
- CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
- UKCA marking (see declaration of conformity)To UK EX instructions
- Explosion protection certification outside the EUEPL Db (GB) EPL Gb (GB)
- Explosion protectionZone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX)
- ATEX category gasII 2G
- ATEX category dustII 2D
- Explosion ignition protection type for gasEx h IIC T4 Gb X
- Explosion ignition protection type for dustEx h IIIC T120°C Db X
- Explosion ambient temperature0 °C <= Ta <= +60 °C
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC1 - Low corrosion stress
- LABS (PWIS) conformityVDMA24364-B2-L
- Suitability for the production of Li-ion batteriesSuitable for battery production according to the Festo internal definition of the degree of severity F1A with restrictions regarding the use of Cu/Zn/Ni
- Ambient temperature0 °C ... 60 °C
- Max. stop force15 N
- Max. axial force10 N
- Max. radial force15 N
- Theoretical torque at 0.6 MPa (6 bar, 87 psi)0.15 Nm
- Permissible mass moment of inertia6.5E-4 kgm²
- Product weight38 g
- Type of mountingVia female thread
- Pneumatic connectionM3
- Note on materialsRoHS-compliant
- Material drive shaftHigh-alloy stainless steel
- Material sealsTPE-U(PU)
- Material housingAnodised wrought aluminium alloy
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文
Pneumatic cylinders

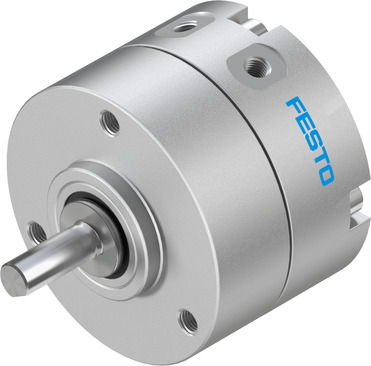

DRVS-6-90-P-EX4
DRVS-6-90-P-EX4
Subscribe to get pricesModel: DRVS-6-90-P-EX4
Order No: 2536483
SKU: 10000084405501
Condition: New Sealed Under Guarantee
Size: 0.00 mm，0.00 mm，0.00 mm
Weight: 38.00g
Product Selection Engineer：Zuohuiqin
In Stock
Brief Introduction
DRVS-6-90-P-EX4
Size6 Cushioning angle0.5 deg Swivel angle0 deg ... 90 deg Permissible stop radius10 mm CushioningElastic cushioning rings/plates at both ends Mounting positionoptional Mode of operationDouble-acting DesignVane Position detectionVia proximity switch Symbol00991265 VariantsSpigot shaft Operating pressure0.35 MPa ... 0.8 MPa Operating pressure3.5 bar ... 8 bar Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)3 Hz Repetition accuracy1 deg CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX) UKCA marking (see declaration of conformity)To UK EX instructions Explosion protection certification outside the EUEPL Db (GB) EPL Gb (GB) Explosion protectionZone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) ATEX category gasII 2G ATEX category dustII 2D Explosion ignition protection type for gasEx h IIC T4 Gb X Explosion ignition protection type for dustEx h IIIC T120°C Db X Explosion ambient temperature0 °C
