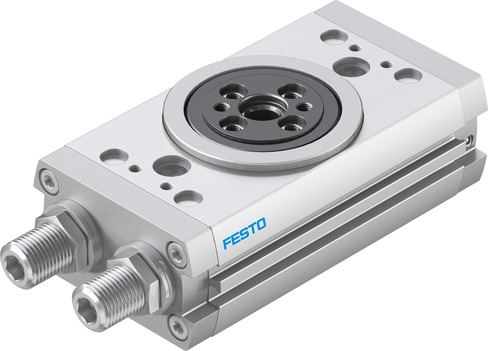

DRRD-25-180-FH-PA

Size25 Cushioning angle33 deg Setting range of swivel angle for each end position+10/-100 deg Swivel angle180 deg CushioningElastic cushioning rings/plates at both ends Mounting positionoptional DesignRack and pinion Position detectionVia proximity switch Symbol00991265 Operating pressure0.3 MPa ... 0.8 MPa Operating pressure3 bar ... 8 bar Mode of operationDouble-acting Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) LABS (PWIS) conformityVDMA24364 zone III Ambient temperature-10 °C ... 60 °C Theoretical torque at 0.6 MPa (6 bar, 87 psi)5.15 Nm Permissible mass moment of inertia0.09 kgm² Product weight1349 g Type of mountingEither: With through-hole Via female thread Pneumatic connectionM5 Note on materialsRoHS-compliant Material drive shaftTempered steel Material coverWrought aluminium alloy Anodised Material sealsNBR TPE-U(PU) Material housingWrought aluminium alloy Smooth anodised
