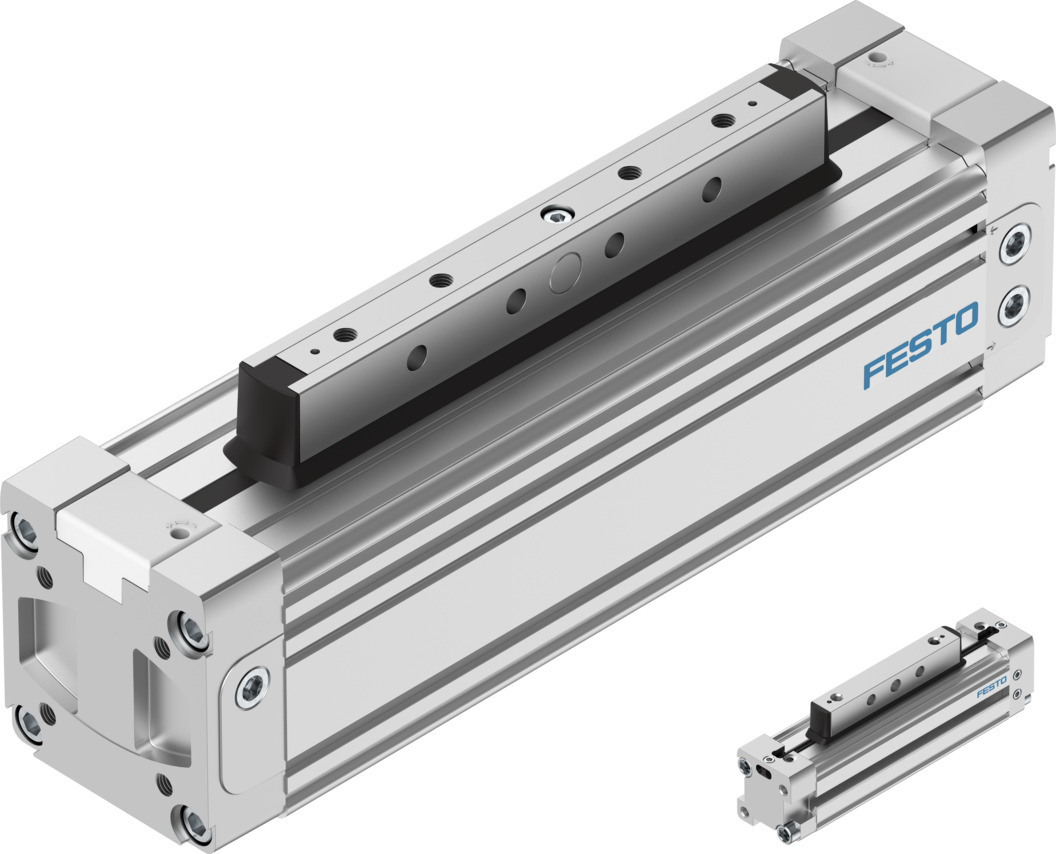

Stroke1 mm ... 8500 mm
Piston diameter25 mm
CushioningPneumatic cushioning, adjustable at both ends
Mounting positionoptional
Position detectionVia proximity switch
VariantsSupply port at both ends Standard piston Extended piston
Operating pressure0.2 MPa ... 0.8 MPa
Operating pressure2 bar ... 8 bar
Mode of operationDouble-acting
CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
UKCA marking (see declaration of conformity)To UK EX instructions
Explosion protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 22 (ATEX)
ATEX category gasII 2G
ATEX category dustII 3D
Explosion ignition protection type for gasEx h IIC T4 Gb X
Explosion ignition protection type for dustEx h IIIC T120°C Dc X
Explosion ambient temperature-10 °C <= Ta <= +60 °C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Suitable for use with foodSee supplementary material information
Ambient temperature-10 °C ... 60 °C
Cushioning length18 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke295 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295 N
alternative connectionsSee product drawing
Type of mountingWith accessories
Note on materialsRoHS-compliant
Material coverDie-cast aluminium
Material sealsNBR TPE-U(PU)
