- Stroke20 mm ... 400 mm
- Piston diameter25 mm
- Operating mode, drive unitYoke
- CushioningElastic cushioning rings/plates at both ends Pneumatic cushioning, adjustable at both ends Shock absorber, soft characteristic curve
- Mounting positionoptional
- GuidePlain-bearing guide Recirculating ball bearing guide
- DesignGuidance
- Position detectionVia proximity switch
- VariantsHeat-resistant seals max. 120°C
- Operating pressure0.15 MPa ... 1 MPa
- Operating pressure1.5 bar ... 10 bar
- Mode of operationDouble-acting
- CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
- UKCA marking (see declaration of conformity)To UK EX instructions
- Explosion protectionZone 1 (ATEX) Zone 2 (ATEX)
- ATEX category gasII 2G
- Explosion ignition protection type for gasEx h IIC T4 Gb
- Explosion ambient temperature-20 °C <= Ta <= +70 °C
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC0 - No corrosion stress 2 - Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Ambient temperature-20 °C ... 120 °C
- Impact energy in end positions0.15 J ... 0.3 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295 N
- alternative connectionsSee product drawing
- Pneumatic connectionG1/8
- Note on materialsRoHS-compliant
- Material coverWrought aluminium alloy
- Material sealsNBR
- Material housingWrought aluminium alloy
- Material piston rodHigh-alloy stainless steel
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文
Pneumatic cylinders

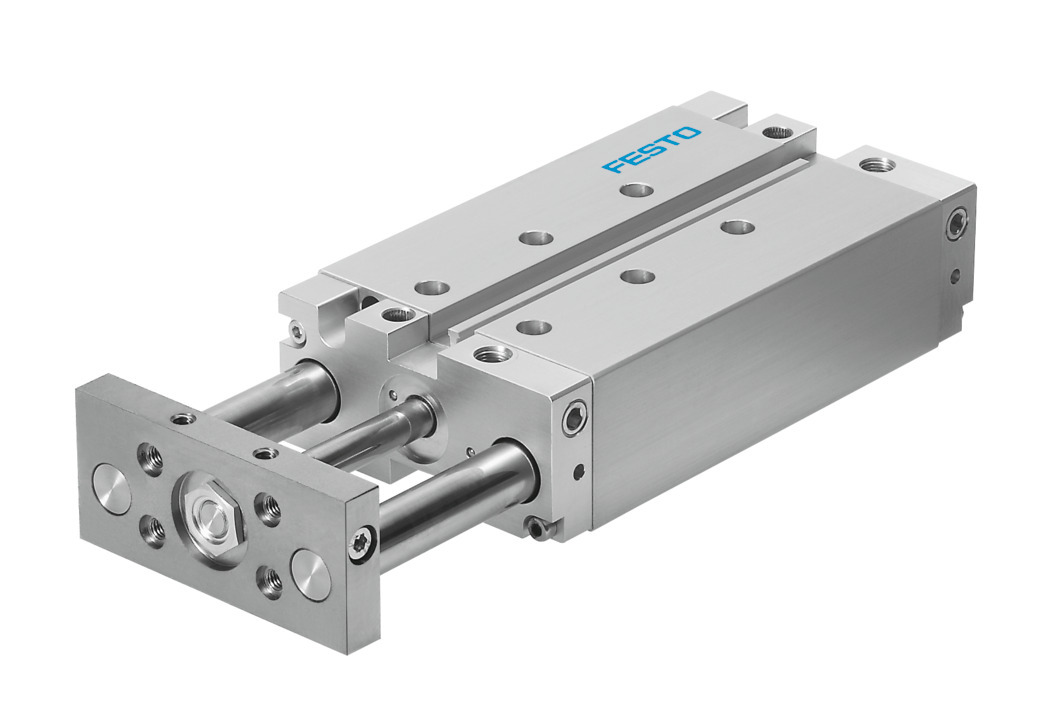

DFM-25-150-B-PPV-A-GF-S6
DFM-25-150-B-PPV-A-GF-S6
Subscribe to get pricesModel: DFM-25-150-B-PPV-A-GF-S6
Order No: 532317
SKU: 10000098276601
Condition: New Sealed Under Guarantee
Size: 0.00 mm，0.00 mm，0.00 mm
Weight: 450.00g
Product Selection Engineer：Zuohuiqin
In Stock
Brief Introduction
DFM-25-150-B-PPV-A-GF-S6
Stroke20 mm ... 400 mm Piston diameter25 mm Operating mode, drive unitYoke CushioningElastic cushioning rings/plates at both ends Pneumatic cushioning, adjustable at both ends Shock absorber, soft characteristic curve Mounting positionoptional GuidePlain-bearing guide Recirculating ball bearing guide DesignGuidance Position detectionVia proximity switch VariantsHeat-resistant seals max. 120°C Operating pressure0.15 MPa ... 1 MPa Operating pressure1.5 bar ... 10 bar Mode of operationDouble-acting CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX) UKCA marking (see declaration of conformity)To UK EX instructions Explosion protectionZone 1 (ATEX) Zone 2 (ATEX) ATEX category gasII 2G Explosion ignition protection type for gasEx h IIC T4 Gb Explosion ambient temperature-20 °C
