Brief Introduction

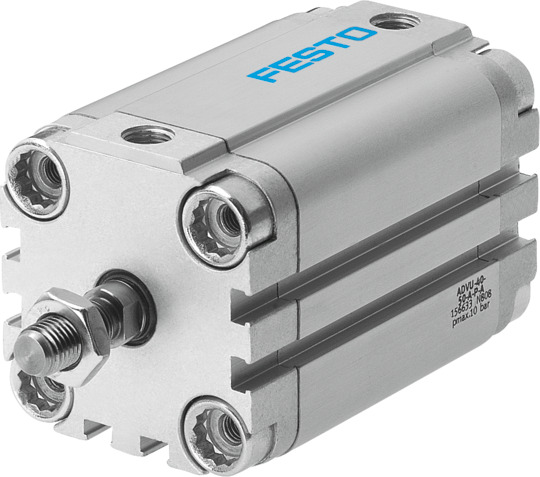

ADVU-40-25-APA

Corrosion resistance class CRC2 - Moderate corrosion stressLABS (PWIS) conformityVDMA24364-B1/B2-LAmbient temperature-20 °C ... 80 °CImpact energy in end positions0.52 JTheoretical force at 0.6 MPa (6 bar, 87 psi), return stroke686 NTheoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke754 NMoving mass for 0 mm stroke63 gAdditional moving mass per 10 mm stroke9 gBasic weight for 0 mm stroke433 gAdditional weight per 10 mm stroke59 gType of mountingWith through-holeWith accessoriesEither:Pneumatic connectionG1/8Material collar screwsGalvanised steelMaterial coverWrought aluminium alloyMaterial dynamic sealsNBRTPE-U(PU)Material piston rodHigh-alloy steelMaterial cylinder barrelWrought aluminium alloy
