Brief Introduction

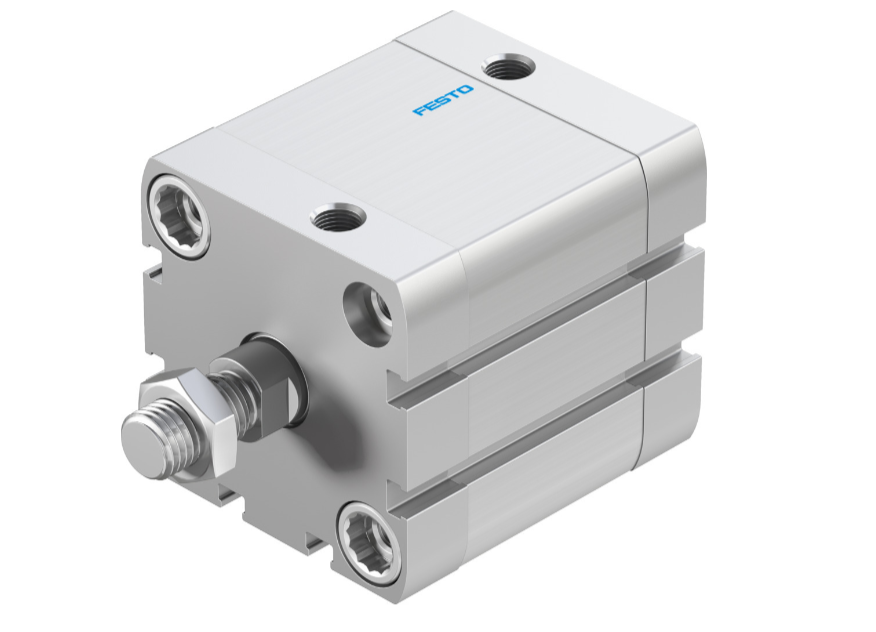

ADN50-30-A-P-A

Stroke30 mm Piston diameter50 mm Piston rod threadM12x1.25 CushioningElastic cushioning rings/plates at both ends Mounting positionoptional Conforms to standardISO 21287 Piston-rod endMale thread Position detectionVia proximity switch Symbol00991217 VariantsPiston rod at one end Operating pressure0.06 MPa ... 1 MPa Operating pressure0.6 bar ... 10 bar Mode of operationDouble-acting Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC2 - Moderate corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Ambient temperature-20 °C ... 80 °C Impact energy in end positions1 J Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1057 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1178 N Moving mass212 g Product weight685 g Type of mountingWith through-hole Via female thread With accessories Either: Pneumatic connectionG1/8 Note on materialsRoHS-compliant Material collar screwsSteel Material coverAnodised wrought aluminium alloy Material sealsTPE-U(PUR) Material piston rodHigh-alloy steel Material cylinder barrelSmooth-anodised wrought aluminium alloy
