Model EX-26B
Detection distance 6-14mm (center 10mm) (50x50mm white matte paper, with a set distance of 10mm, the diameter of the light spot is φ 1mm)
Minimum detectable object: 0.1mm copper wire (set distance: 10mm)
Less than 15% of the delay action distance [50x50mm using white matte paper]
Repetition accuracy (perpendicular to the detection axis) below 0.05mm (set distance: 10mm)
Power supply voltage 12-24V DC ± 10% pulsation P-P10% or less
Consumption current below 13mA
Output PNP open collector transistor
Maximum current outflow: 50mA
External voltage: below 30V DC (between output and+V)
Remaining voltage: below 2V (when the source current is 50mA), below 1V (when the source current is 16mA)
Output: Equipped with short-circuit protection
Response time below 0.5ms
Working status indicator light orange LED (lights up when output is ON)
Stability indicator light green LED (lights up when stable light enters or when stable light does not enter)
Sensitivity regulator equipped with continuously variable regulator
Working mode switch-
Environmental resistance: Protection structure IP67 (IEC), leak proof type (JIS)
Environmental resistance: Use at an ambient temperature of -25 to+55 ℃ (be careful not to condense or freeze), store at -30 to+70 ℃
Environmental resistance: humidity range of 35-85% RH during use, and 35-85% RH during storage
Environmental resistance: Use environmental illumination incandescent lamp: Light receiving surface illumination below 3000lx
Environmental resistance: withstand voltage AC1000V for 1 minute between all power connection terminals and the casing
Environmental resistance: Insulation resistance between all power connection terminals and the casing, 20M Ω or above, high resistance meter based on DC250V
Environmental resistance: Resistance to vibration frequency of 10-500Hz, double amplitude 3mm (MAX.20G), X, Y, and Z directions for 2 hours each
Environmental resistance: Resistance to impact acceleration of 500m/s2 (approximately 50G), 3 times in X, Y, and Z directions each
Projection element red LED (modulation type)
Projection element: Projection peak wavelength 650nm
Material shell: Polyarylester
Lens: Polyarylester
Cable 0.1mm2 3-core rubber cable, length 2m
Cables with an extension of 0.3mm2 or more can be extended to a total length of 50m
Weight of the main body: about 20g
Packaging weight: approximately 45g
Attachment adjustment screwdriver: 1
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文

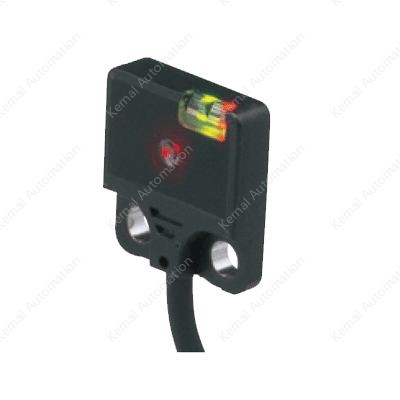

Photoelectric sensor
EX-26B
EX-26B
Subscribe to get pricesModel: EX-26B
Order No: EX-26B
SKU: 10000056569601
Condition: New Sealed Under Guarantee
Size: 10.00 cm，5.00 cm，4.00 cm
Weight: 100.00g
Product Selection Engineer：Lan Boy
In Stock
Brief Introduction
EX-26B
Regulatory compliance CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)<br/> Sensing range 1 m 3.281 ft<br/> Sensing object Min. dia. 2.6 mm dia. 0.102 in opaque object (Setting distance between emitter and receiver: 1 m 3.281 ft)<br/> Hysteresis -<br/> Repeatability(perpendicular to sensing axis) 0.05 mm 0.002 in or less<br/> Supply voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less<br/> Current consumption Emitter: 10 mA or less<br/> Receiver: 10 mA or less<br/> Output PNP open-collector transistor<br/> - Maximum source current: 50 mA<br/> - Applied voltage: 30 V DC or less (between output and +V)<br/> - Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current)<br/> Output:Utilization category DC-12 or DC-13
