This potential multiplication module provides 0 V potential for the outputs of the 8-channel output module (750-530).
This eliminates the need for additional DIN-rail-mount terminal blocks.
The 24 V supply and 0 V potential are derived from the internal power jumper contacts of an adjacent upstream I/O module. A connection of the potentials to the downstream I/O modules is made automatically via the power jumper contacts when snapping the I/O modules together. The 0 V power is provided to all eight field side CAGE CLAMP connections and the 24 V potential passed through without being used by the module.®
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文

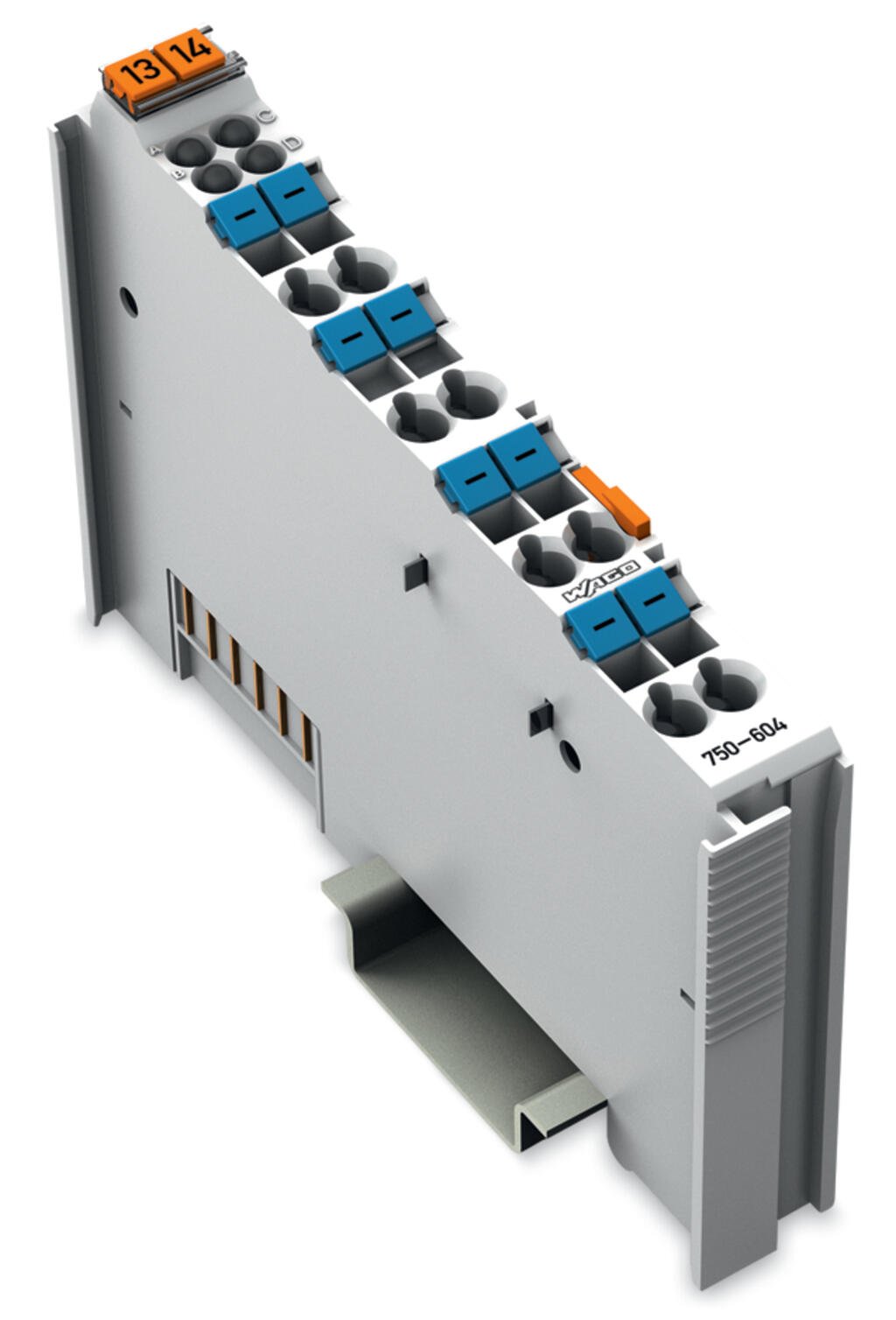

I/O module
750-604
750-604
Subscribe to get pricesModel: 750-604
Order No: WAGO 750-604
SKU: 10000007325001
Condition: New Sealed Under Guarantee
Size: 69.80 mm，12.00 mm，100.00 mm
Weight: 45.50g
Product Selection Engineer：Lixintao
In Stock
Brief Introduction
750-604
This potential multiplication module provides 0 V potential for the outputs of the 8-channel output module (750-530).This eliminates the need for additional DIN-rail-mount terminal blocks.The 24 V supply and 0 V potential are derived from the internal power jumper contacts of an adjacent upstream I/O module. A connection of the potentials to the downstream I/O modules is made automatically via the power jumper contacts when snapping the I/O modules together. The 0 V power is provided to all eight field side CAGE CLAMP connections and the 24 V potential passed through without being used by the module.®
Description
