Brief Introduction

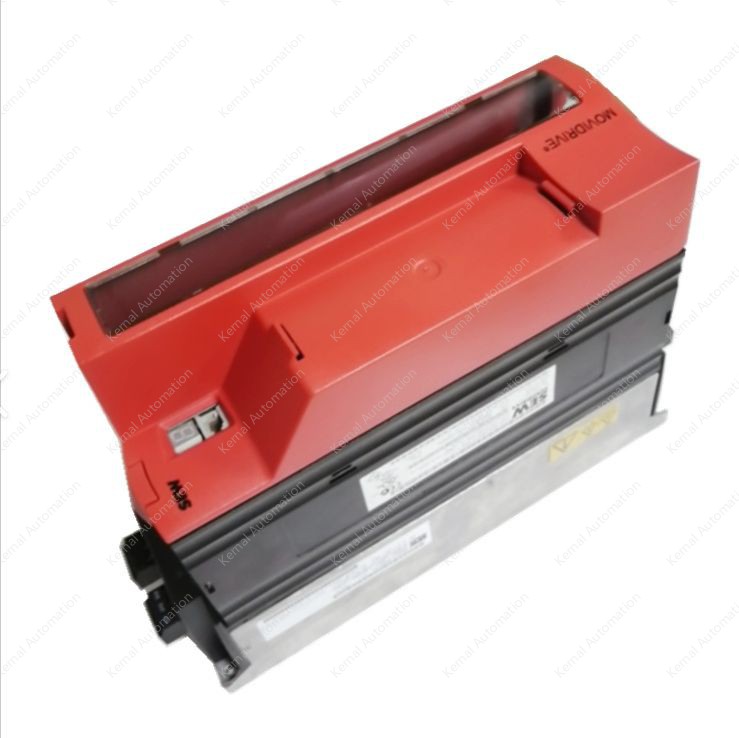

MDX61B0030-5A3-4-00

Rated power: 2.2kW.Input parameters: rated voltage is three-phase AC 380 - 500V, power supply frequency 50 - 60Hz, input current about 5A.Output parameters: output capacity of about 3.7kVA, output current 5.5A, output frequency range 0 - 599Hz.Overload Capacity: Typically withstands 125% sustained overload.Degree of protection: IP20, suitable for indoor cleaning environment.Dimensions: 105mm wide, 314mm high, 234mm deep.Weight: 3.5kg.Control functionsControl mode: Support a variety of control methods, such as voltage vector control (VFC), current vector control (CFC), etc., to achieve high-precision control of the motor.Built-in functions: Integrated IPOS positioning and sequence control system for easy speed control, single-axis position control and other functions. Drive tasks such as positioning and curling can also be completed through standardized control programs, and the user can set the parameters through a wizard without complex programming.
