Brief Introduction

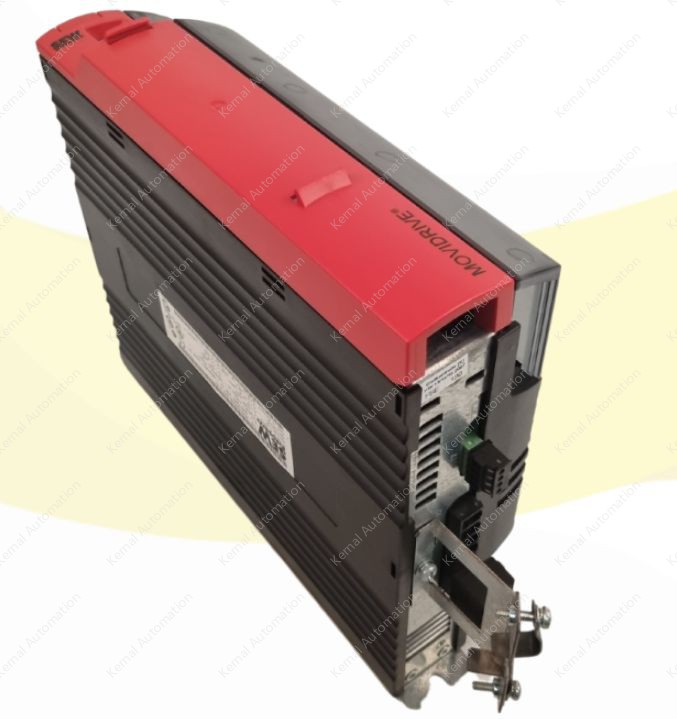

MDX61B0008-5A3-4-0T

Input power: 3-phase 380 - 480V, 50/60HzOutput Power: The output voltage range is 0 - input supply voltage, and the output frequency range is 0 - 650Hz.Power and current parametersAdaptation to motor power: Adaptation of three-phase AC asynchronous motors with a power of about 0.8kW provides stable and reliable drive for motors of this power class.Rated output current: The rated output current is about 2.2AOverload capacity: It has a certain overload capacity, which can last for 60 seconds at 120% rated current and 3 seconds at 150% rated current, which can cope with motor start-up and load mutation.Ambient temperature: The operating ambient temperature range is -10°C - 40°C (derating is required above 40°C), and the storage temperature range is -25°C - 70°C.Humidity: 5% - 95% relative humidity (non-condensing), which can adapt to a more humid working environment, but avoid condensation and damage to the equipment.Protection level: The standard protection level is IP20, which can prevent solid foreign objects with a diameter greater than 12.5mm from entering the inside of the device, which plays a certain role in protecting the equipment.
