Brief Introduction

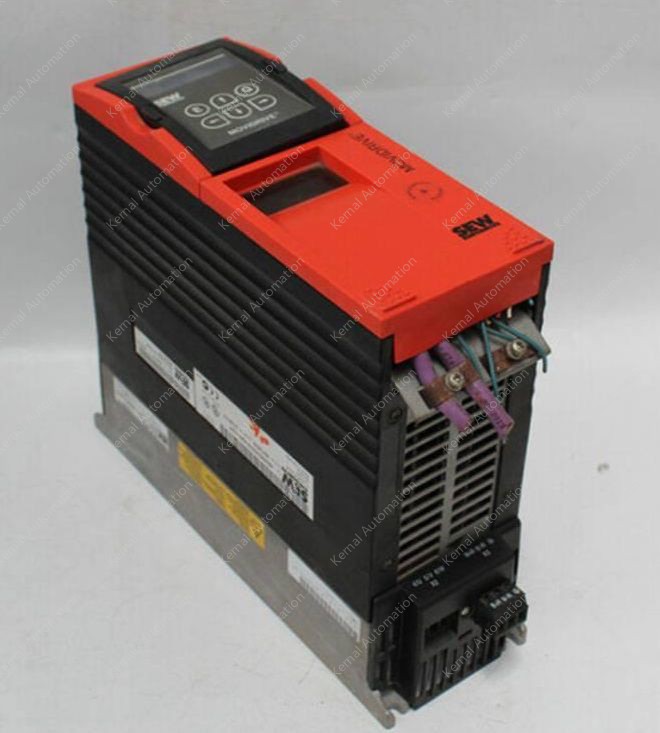

MDX61B0040-5A3-4-0T

Basic parametersApplicable motor power: 0.75kW.Input parameters: three-phase 380 - 500V AC, 50/60Hz, input current 2.1A.Output parameters: output capacity 1.3kVA, output current 1.8A, output frequency range 0 - 650Hz.Overload capacity: 150% overload allowed for 60s; 125% sustained overload; 200% short overload 1s (for motors up to 1.5kW).Degree of protection: IP20.Dimensions: 105mm wide, 314mm high, 234mm deep, and weighs about 3.5kg.Control functionsControl mode: The use of advanced vector control and other algorithms can realize high-precision control of synchronous or asynchronous motors, and can output large torque at low speed.Built-in functions: Integrated IPOS positioning and sequencing control system for specific control tasks and logic operations. The application version of the inverter has a "0T" logo at the end, provides an application module interface, and standardized control programs can be used for positioning, curling and control drive tasks, and the user can set the parameters through a wizard without complex programming.Communication capabilitiesIt supports a variety of communication protocols, such as RS-232/RS485, PROFIBUS, INTERBUS, CAN, DEVICE-NET, SBUS and Ethernet Modbus TCP, etc., which can communicate and interact with the host computer or other devices to achieve remote control and monitoring
