Wire type and power DC 3-wire type 12-24VDC
Sensing side diameter M30
Sensing distance 15mm
Standard sensing target 50×50×1mm(iron)
Response frequency 50Hz
Current specification Current consumption: Max.15mA
Control output PNP Normally Open
Material Brass(nickel plated)
Protection structure IP65
Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance) Max. 20% of sensing distance
Weight ≈ 206g (≈ 243g)
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文

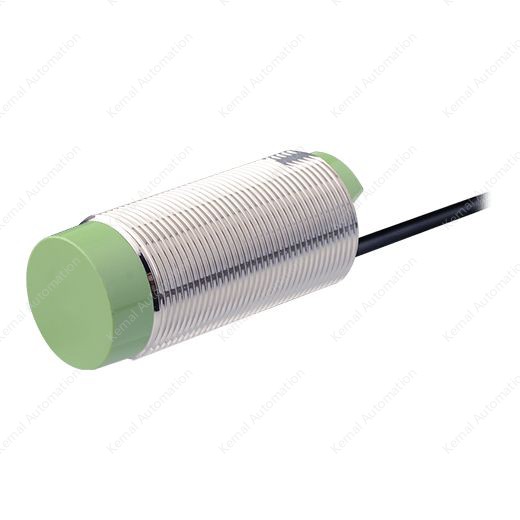

Autonics Proximity switches
CR30-15DP
CR30-15DP
Subscribe to get pricesModel: CR30-15DP
Order No: Autonics CR30-15DP
SKU: 10000018346801
Condition: New Sealed Under Guarantee
Size: 200.00 mm，200.00 mm，10.00 mm
Weight: 206.00g
Product Selection Engineer：Zuohuiqin
In Stock
Brief Introduction
CR30-15DP
The CR series cylindrical capacitive proximity sensors are capable of detecting any material with dielectric different from air. The sensors can detect conductive and non-conductive materials including metal, iron, stone, plastic, water, and grain. The built-in sensitivity adjuster allows easy configuration of detecting distance, making it ideal for application in various environmental settings.
